BMPRO PXShunt 500A
SKU: BMPPXShunt500 Learn More»
Product Description
BMPRO PXShunt 500A, 2 Year Warranty. The PXShunt500 provides wired battery monitoring for high current BMPRO power management systems.

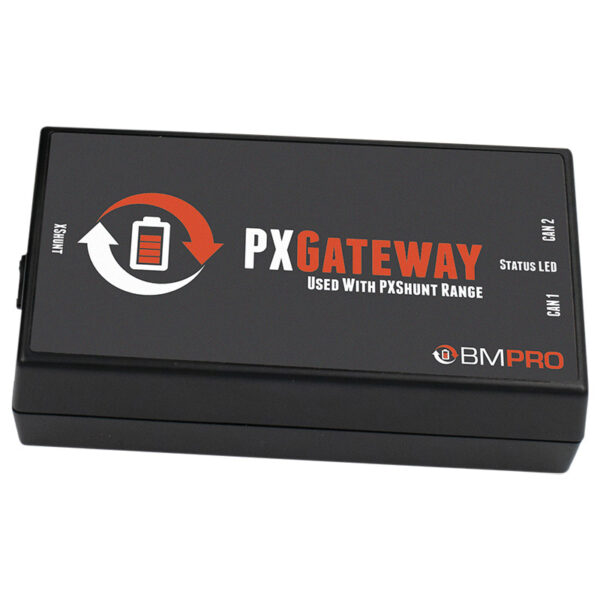

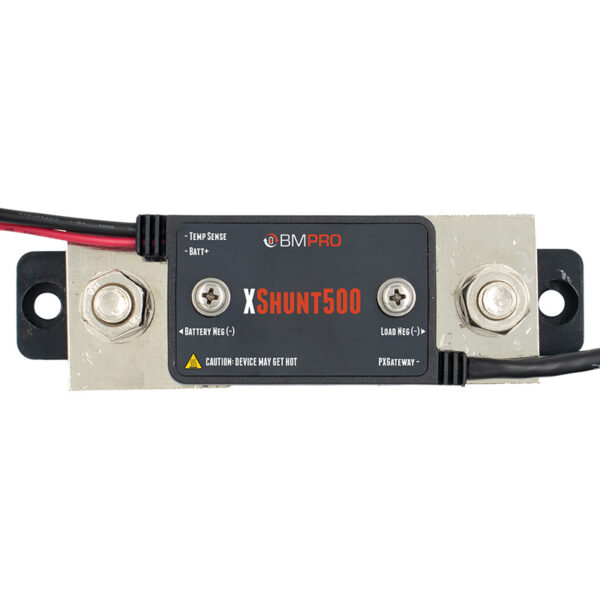

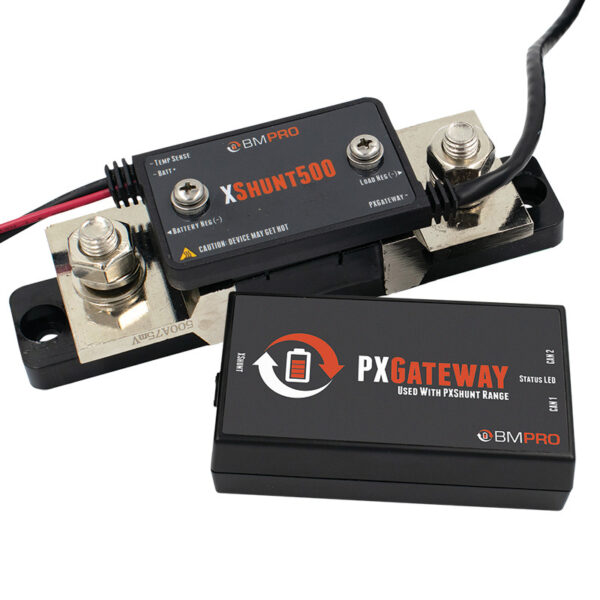

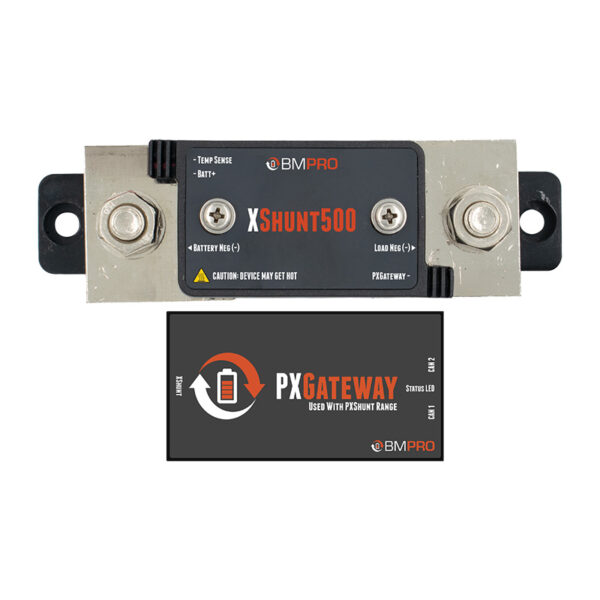

Made up of two components, the XShunt500 and the PXGateway, it is hardwired into your system for performance and reliability. Adding the PXShunt500 to a BMPRO power management system allows high current loads to be directly connected to the battery while maintaining accurate State of Charge and Time Remaining measurements.
The PXShunt500 provides your BatteryPlus35, ASPero and J35 power management systems with additional information on battery usage, so your display’s battery time remaining and state of charge are always up-to-date.
The PXShunt500 communicates via a CAN bus cable, is designed for 12V batteries up to 1200Ah in capacity, features easy to read LED status indicators and is rated for 500A of continuous current.
The PXShunt500 is IP67 rated, making it suitable for external mounting outside your caravan.
Key Features:
- High current/external charge monitoring
- Supports 12V batteries up to 1200Ah
- Rated for 500A of continuous current
- Easy to read LED status indicators
- Simple Installation
- Compatible with Lead Acid and LiFePO4 deep cycle batteries
Battery Properties Monitored:
- Voltage
- Current (charging/discharging)
- Energy usage (Ah)
- Temperature
.png)
Specifications
SKU BMPPXShunt500
Brand BMPRO
Warranty Period: 2 Years
Product Category Battery Monitors
Dimensions 156 x 46 x 47.5mm (XShunt500), 90 x 52 x 24mm (PXGateway)
Humidity 0 - 90% non-condensing
Weight (kg) 1 (Xshunt 500), 0.15 (PXGateway)
Operating temperature range -10 - 50C
Battery Voltage Range 8-16V
